BianchiOmnia C Type Belt Nexus 5SP

Loading..

Questions and Answers

Aluminum
625
Bosch
29"
Wave
Disc Brakes

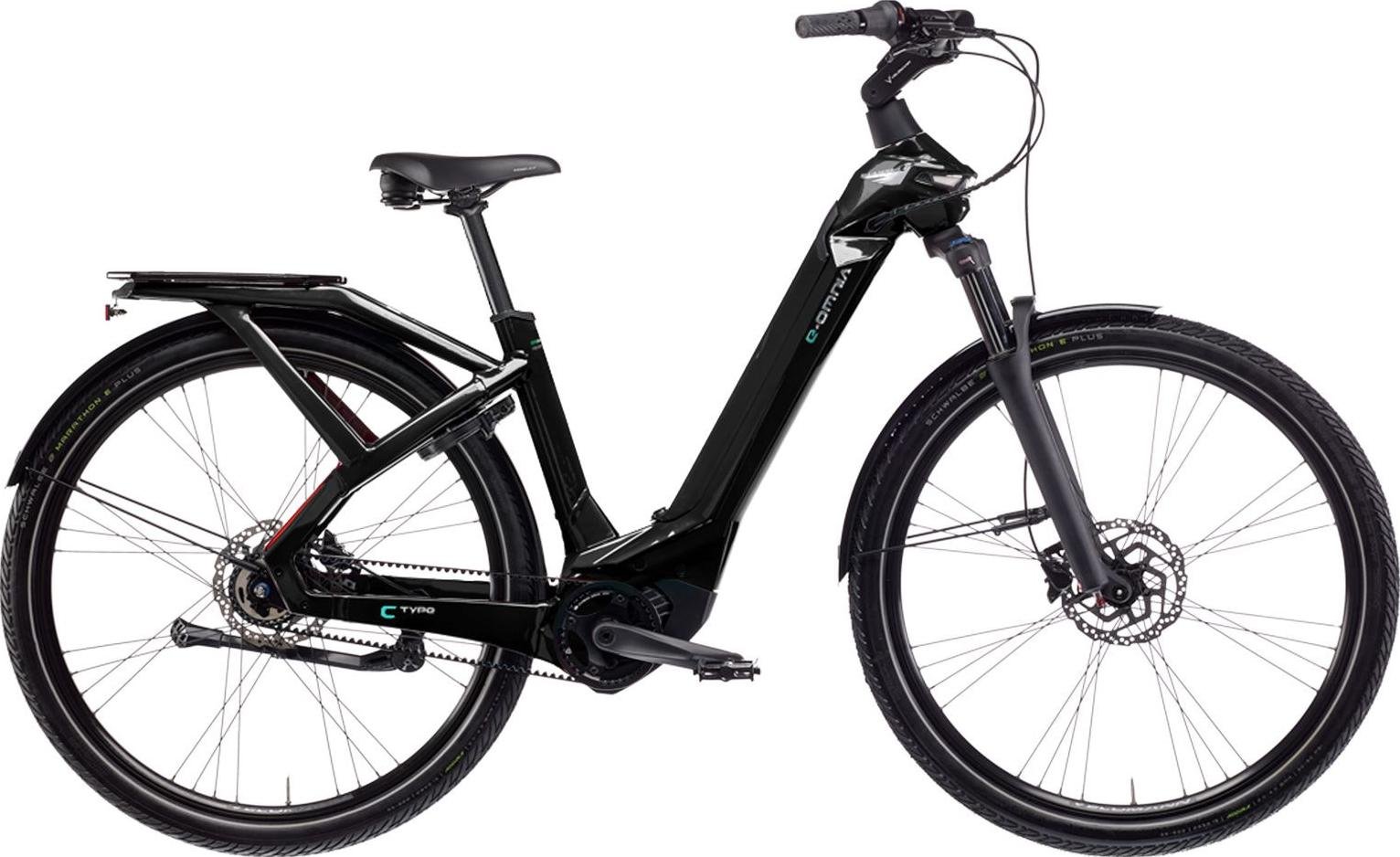

Introducing the Bianchi Omnia C Type Belt Nexus 5SP 2023, a sleek and versatile electric mountain bike designed for riders looking to enhance their outdoor adventures. This bike blends practicality with performance, making it ideal for both the casual rider and seasoned enthusiasts alike. With a step-thru chain drive ALU frame, available in sizes SM, MD, and LG (45-50-55), getting on and off the bike ...Read more

Accessories

  • Rackcustom rear carrier integrated into the frame design
  • StandVELOMANN R78 KING EVO REAR MAX 35KG
  • FenderSKS PET MUDGUARDS A65 R
  • Rear LightSpanninga integrated rear lights
  • Front LightINTEGRATED CUSTOM FRONT AND SIDE LIGHT MADE W/SPANNINGA

    • Brakes

  • BrakeSHIMANO BR-MT200, W/180MM FRONT & REAR ADAPTERS, RESIN PAD
  • RotorsShimano SM-RT10, diam. 180mm

    • Cockpit

  • StemVelomann 35,3D FORGED 0°>90° L70MM
  • GripsHERRMANS LUNA LOCK
  • HeadsetFsa NO.55R/558 1.5"
  • HandlebarVelomann AL6061, diam. 31.8mm, width 630mm, Rise 34mm, Backsweep 41°

    • General

  • Framee-Omnia C Type Step Thru chain drive ALU, size: SM, MD, LG (45-50-55), Ready to fix the chainguard, Post mount 180mm disc brake type, Ready to fix rear kyckstand, custom rearcarrier integrated in the frame, BatteryWall Bosch OmniaC, Set dropout IG 135mm I

    • Groupset

  • Chain / BeltGATES CARBON DRIVE CDX BELT, 1298 MM LENGTH, 11 MM PITCH, 12 MM WIDTH
  • CassetteGates Carbon, CDX Rear Sprocket, 28T, Shimano Nexus 5 Mech. Hub 6-Lobe "Unified" Sprocket for 45,5 mm Beltline
  • CranksetFSA METROPOLIS ALLOY E-BIKE SPECIFIC, CRANK LENGTH 170MM, ISIS BB AXLE, W/GATES CARBON DRIVE CDX 39T
  • ShiftersShimano SL-C7000-5, NEXUS, REVO SHIFTER, 5s
  • Bottom BracketIncluded w/motor unit

    • Motor & Battery

  • MotorBOSCH PERFORMANCE LINE CX 250W 85NM
  • Torque85 Nm
  • BatteryBOSCH POWERTUBE 625WH
  • Battery Capacity625 Wh
  • Motor ManufacturerBosch
  • Battery ManufacturerBosch
  • Maximum Motor Supportup to 25 kph

    • Wheels & Tires

  • TiresSCHWALBE MARATHON E-PLUS 55-622 28X2.15
  • WheelsVELOMANN EBIKE MAXX 29" - 622X25C
  • Rear HubSHIMANO NEXUS SG-C7000-5D 5SP, CENTER LOCK
  • Front HubSHIMANO HB-MT400-B CENTER LOCK, 15X110MM TA

    • Saddle

  • SaddleVelomann A038UE0 Unisex, Rail Elastomer, black steel rail, 256x220
  • Seat PostVelomann, lenght 350mm-15/17'' and 400mm-19/21'', diam.31,6mm, 0mm seatback, AL2014 shaft

    • Suspension

  • ForkSR SUNTOUR XCM34 BOOST LOR DS 29" TRAVEL 100MM
  • Fork typesuspension fork
  • Front suspension100mm
  • Fork ManufacturerSR Suntour
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
