TrekCheckpoint SLR 6 AXS

Loading..

Questions and Answers

Carbon
SRAM Rival eTap AXS
28" / 700c
Diamond
Disc Brakes

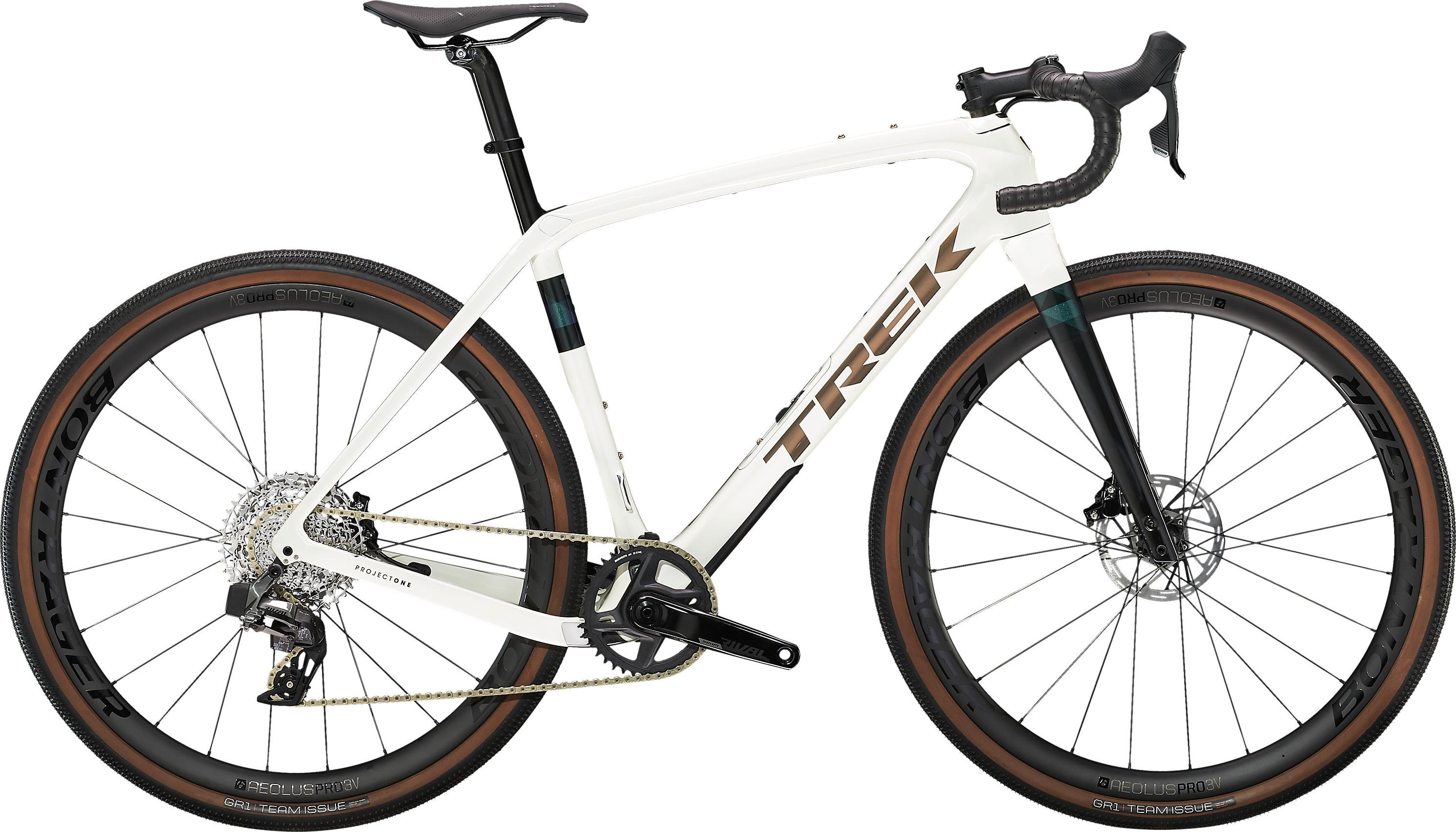

Introducing the Trek Checkpoint SLR 6 AXS, a versatile gravel bike crafted for riders who crave adventure and need performance on varied terrains. This bike is constructed with Trek’s 700 Series OCLV Carbon frame, which ensures a lightweight yet incredibly sturdy ride. The built-in IsoSpeed technology offers excellent compliance over rough roads, providing a smooth experience even on the bumpiest ...Read more

Brakes

  • Brake SRAM Rival hydraulic disc, flat mount
  • Rotors SRAM Paceline, rounded, centerlock, 160mm | Max brake rotor sizes: 160mm front & rear

    • Cockpit

  • StemBontrager Pro, 31.8mm, Blendr compatible, 7 degree, Size 49: 70mm length, Size 52, 54: 80mm length, Size 56, 58: 90mm length, Size 61: 100mm length
  • Tape Bontrager Supertack Perf tape
  • HandlebarBontrager Pro IsoCore VR-SF, Size 49: 38cm, Size 52: 40cm, Size 54, 56: 42cm, Size 58, 61: 44cm

    • General

  • Frame 700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
  • Weight*56 - 8.69 kg / 19.16 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

    • Groupset

  • Chain / BeltSRAM Rival, 12 speed
  • CrankSRAM Rival AXS w/ power meter, 40T, DUB Wide, Size 49: 165mm length, Size 52: 170mm length, Size 54, 56: 172.5mm length, Size 58, 61: 175mm length
  • CassetteSRAM XG-1251, 10-44, 12 speed
  • Shifters SRAM Rival eTap AXS, 12 speed
  • Bottom Bracket SRAM DUB, T47 threaded, internal bearing
  • Rear Derailleur SRAM Rival XPLR eTap AXS, 44T max cog
  • GearingSRAM Rival eTap AXS, 12fach

    • Wheels & Tires

  • TiresBontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
  • Rear AxisBontrager Switch thru axle, removable lever
  • Front Axis Bontrager Switch thru axle, removable lever
  • Rear WheelBontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 142x12mm thru axle
  • Front WheelBontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle

    • Saddle

  • SaddleBontrager Verse Short Elite, hollow stainless steel rails, Size 49, 52: 155mm width, Size 54, 56, 58, 61: 145mm width
  • Seat PostBontrager carbon seatmast cap, 5mm offset, Size 49, 52, 54, 56: short length, Size 58, 61: tall length

    • Suspension

  • Fork Checkpoint carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.
