TrekRail 5 Gen 3

$5,649.00

MSRP

-35%
$3,699.93

Excl. taxes and shipping

Colors
Sizes
Loading..

About the Seller

Location: 3179 Cahaba Heights Rd Birmingham AL, Vestavia Hills, Alabama, 35243, United States
Estimated shipping time: 2 – 5 days

Delivery Options

Shipping -- available

ShippingConvenient online payment and delivery to your home.

Click & Collect -- available

Click & CollectPay securely online and collect directly from our local partner store.

Reserve in Store -- available

Reserve in StoreReserve online, buy directly in store: The reservation fee will be deducted from the purchase price.

Questions and Answers

Aluminum
500
Bosch
Shimano Deore
29"
Diamond
Disc Brakes

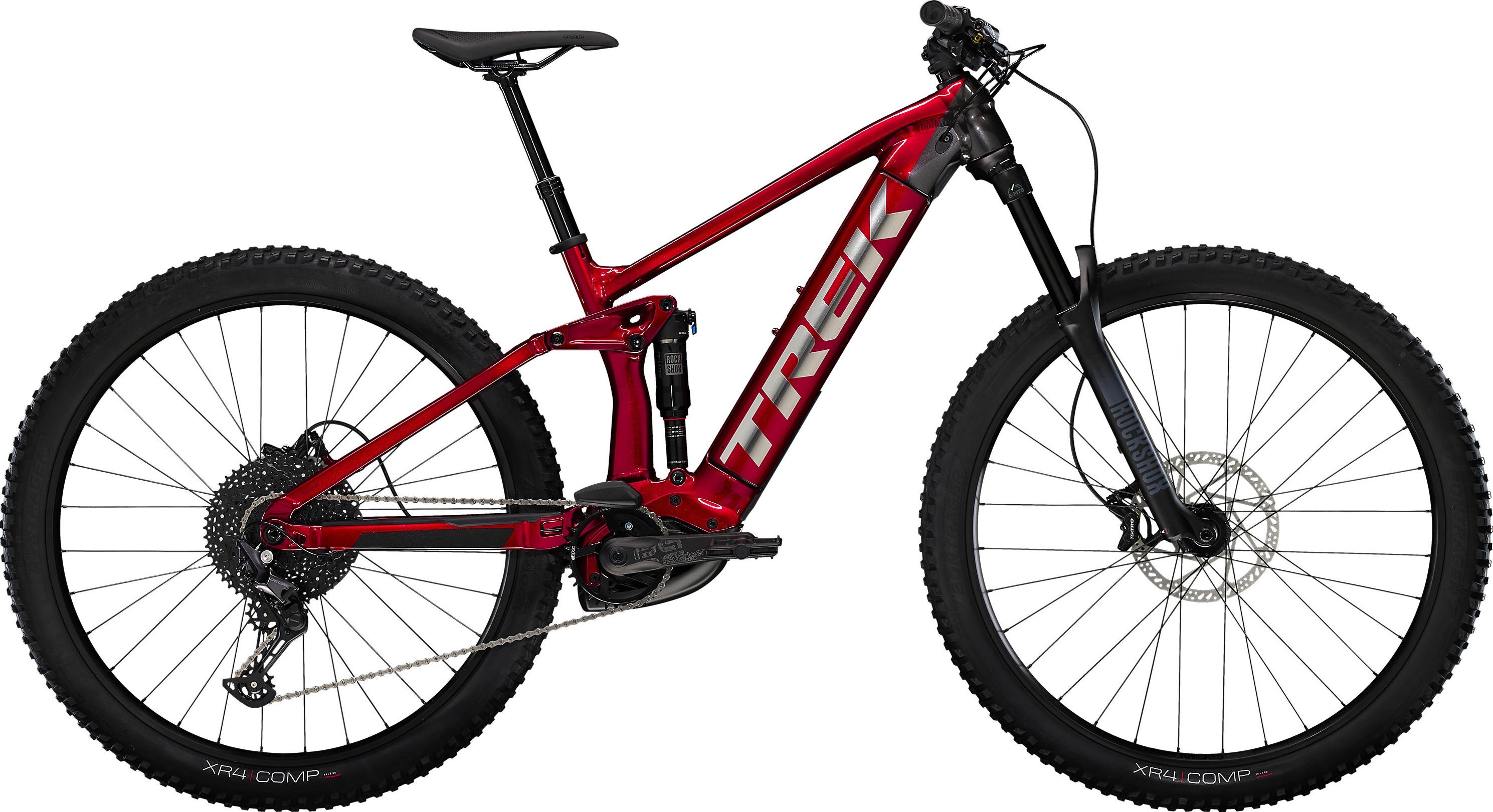

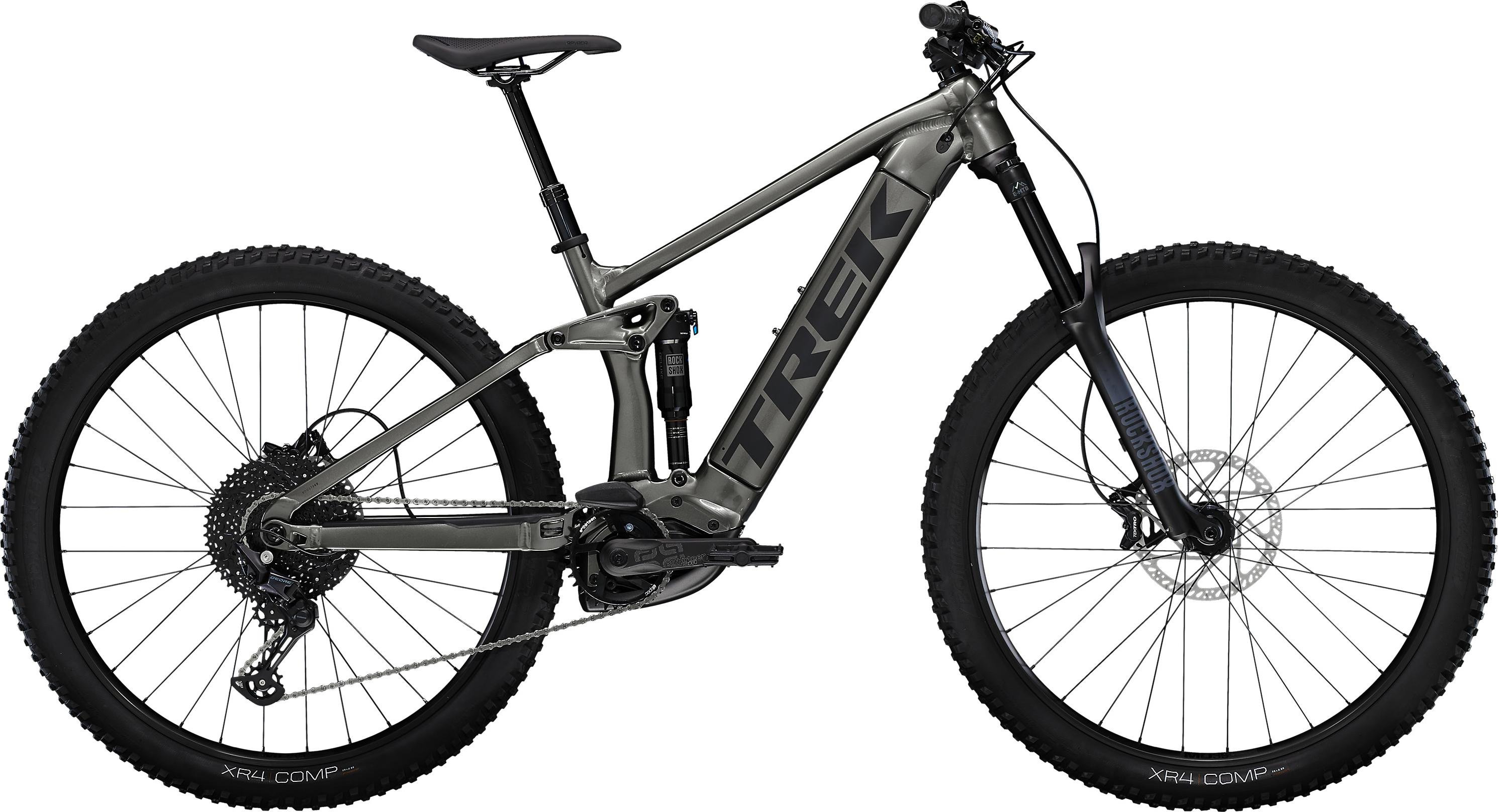

The Trek Rail 5 Gen 3 2023 is an electric mountain bike that strikes the perfect balance between performance, versatility, and user-friendliness. It's designed for riders who crave adventure, whether you’re just starting out or you’ve been shredding trails for years. Built from Alpha Platinum Aluminum, the frame is lightweight yet incredibly strong, which means it can handle whatever the outdoors ...Read more

Brakes

  • Brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
  • Rotors Shimano RT76, 6-bolt, 203mm | Max brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer

    • Cockpit

  • StemBontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
  • GripsBontrager XR Trail Comp, nylon lock-on
  • Handlebar Bontrager alloy, 31.8mm, 15mm rise, 750mm width
  • Display Bosch LED remote, smart system

    • General

  • Frame Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
  • Weight*M - 24.29 kg / 53.56 lbs
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    • Groupset

  • Chain / Belt Shimano Deore M6100, 12 speed
  • Crank E*thirteen E*spec Plus, 165mm length
  • Cassette Shimano Deore M6100, 10-51, 12 speed
  • Shifters Shimano Deore M6100, 12 speed
  • Rear Derailleur Shimano Deore M6100, long cage
  • Pedals VP-536 nylon platform
  • Chainrings E*thirteen E*spec, 34T alloy, 55mm chainline
  • GearingShimano Deore

    • Motor & Battery

  • Motor ManufacturerBosch
  • Torque85 Nm
  • Battery Bosch PowerTube 500Wh, smart system
  • Charger Bosch standard 4A, 110V, smart system
  • Battery Capacity500 Wh
  • Battery ManufacturerBosch
  • Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Maximum Motor Supportup to 25 kph

    • Wheels & Tires

  • Tires Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60''
  • Wheels Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
  • Rear Hub Bontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle
  • Front Hub Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
  • Rear AxisBontrager Switch thru axle, removable lever

    • Saddle

  • Saddle Bontrager Arvada, steel rails, 138mm width
  • Seat PostTranzX JD-YSP18, internal routing, 31.6mm, Size S: 100mm travel, 361mm length, Size M, L, XL: 130mm travel, 425mm length

    • Suspension

  • Fork RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
  • Fork typesuspension fork
  • Front suspension160mm
  • Fork ManufacturerRockShox
  • Shock RockShox Deluxe Select+ RT, 230mm x 57.5mm
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. Errors and omissions excepted.

    About Trek

    Trek is a brand with a rich history, born in 1976 in a Wisconsin barn with a mission to craft exceptional bicycles. Trek’s philosophy is all about innovation, sustainability, and creating bikes that connect people to their love of riding. Whether you’re into road cycling, mountain biking, or just cruising around town, Trek has a bike for you. Their lineup spans high-performance models for competitive riders to hybrids and e-bikes perfect for commuters or casual adventurers. Riders rave about Trek’s blend of durability, comfort, and cutting-edge tech, often saying their bikes feel like an extension of themselves. Whether you're a seasoned cyclist or a weekend warrior, Trek is built for anyone who wants to ride more and ride better. Their commitment to quality and community makes them a brand that’s more than just bikes - it’s a lifestyle. Why not join the Trek family and see where it takes you?
